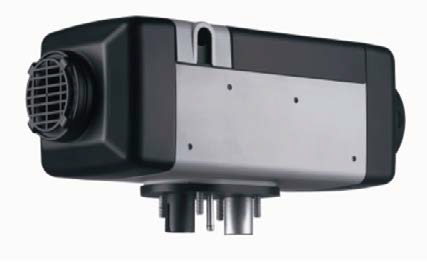

Fusion Mobile Hot Air System
Technical Data
(tolerance ±10%)
| EG-Type Approval code | e1*2001/56*0022*_ |
| Heating Output (kW) | Control Range: 0.9 – 2.0 |
| Fuel Consumption (l/h) | Control Range: 0.12 – 0.24 |
| Rated Voltage (V) | 12 / 24 |
| Rated Power Consumption | Control Range: 14 – 29 |
| Heating Air Flow (against 0.5m/bar) (m3/h) | Maximum: 93 |
| Fuel Type | Diesel EN 590 / PME DIN EN 14214 / heating oil EL |
| Operating temperature range (ºC) | -40 to +40 |
| Dimensions (LxBxH) (mm) | 311 x 120 x 121 |
| Weight (kg) | 2.6 |
